Controller Installation

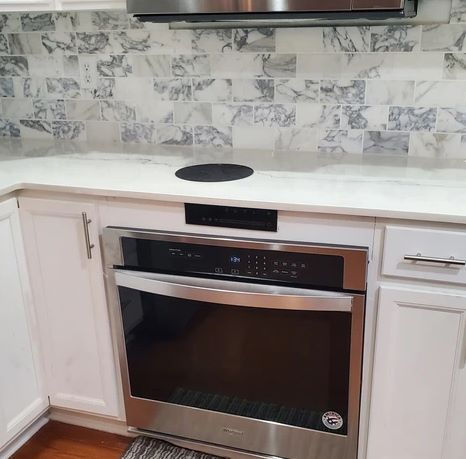

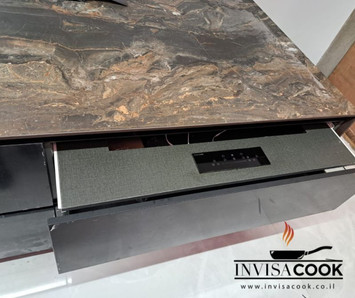

The controller should be built into a 'draw within a draw' underneath the countertop.


The piece designed to hold the controller should be 1 inch thick, and should have an additional piece of wood around 1/8 inch to 1/4 inch thick to support the back of the controller.



Openings should exist between the supporting piece of wood (1/8"), and the wood holder (1") to allow the relevant wires to reach the controller.

download (1).png
download (2).png

The connection wires are 1 meter long.

An STL file of the outside surfaces of the controller representing its size and shape can be download here
